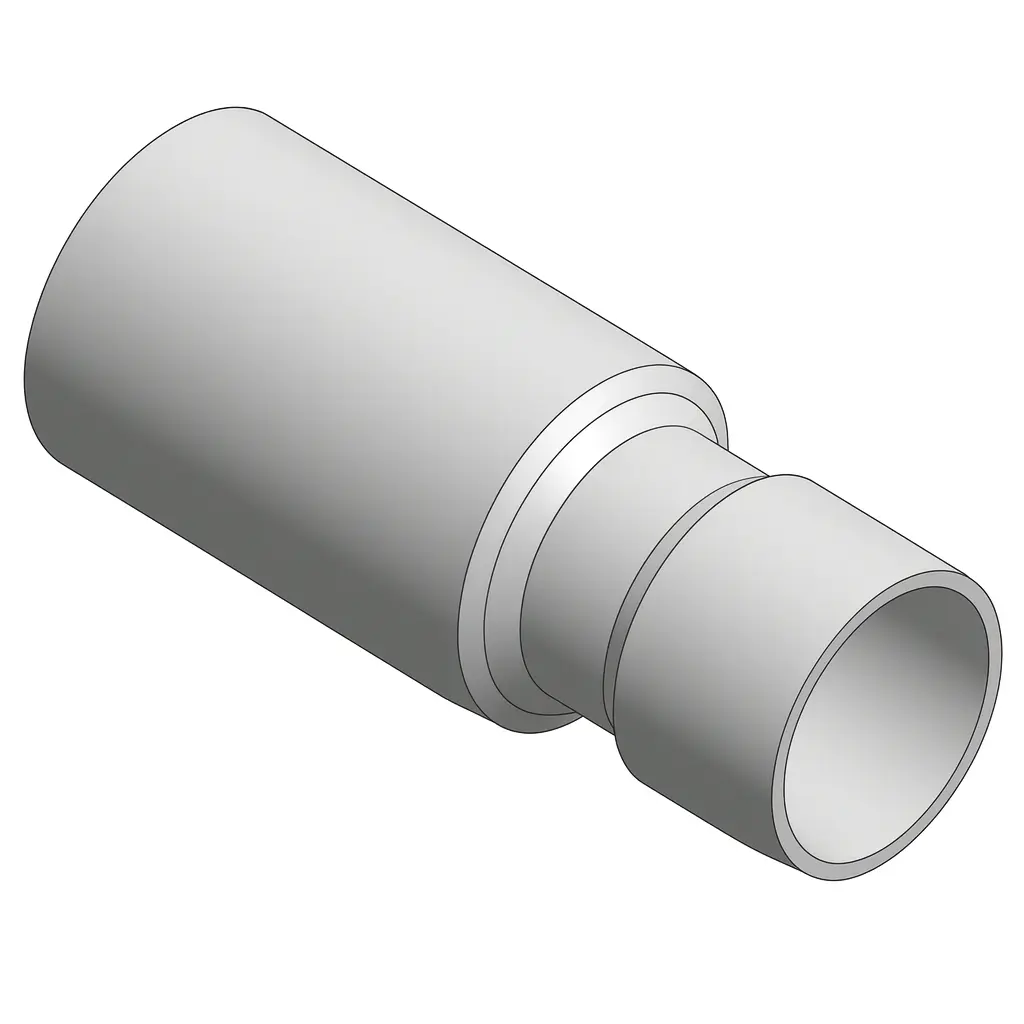

P100 Bore Pipe to P100 Conduit Joiner – 110mm x 100mm

The P100 Bore Pipe to P100 Conduit Joiner provides a secure, watertight transition between 110mm HDPE bore pipe and 100mm communication-grade PVC conduit, ensuring a smooth and reliable connection for underground communication networks.

Key Features

• Reliable Connection: Designed to connect polyethylene (PE) bore pipe to PVC communication conduit for Telstra and NBN systems.

• Non-Axial Restraint Design: Allows for secure joining while accommodating natural pipe movement and ground shifts.

• Durable Construction: Manufactured from high-quality PVC for excellent impact and corrosion resistance in underground installations.

• Precision Fit: Engineered to Telstra specifications for accurate alignment and consistent performance.

• Easy Installation: Simple push-fit design for quick assembly on-site with no complex tooling required.

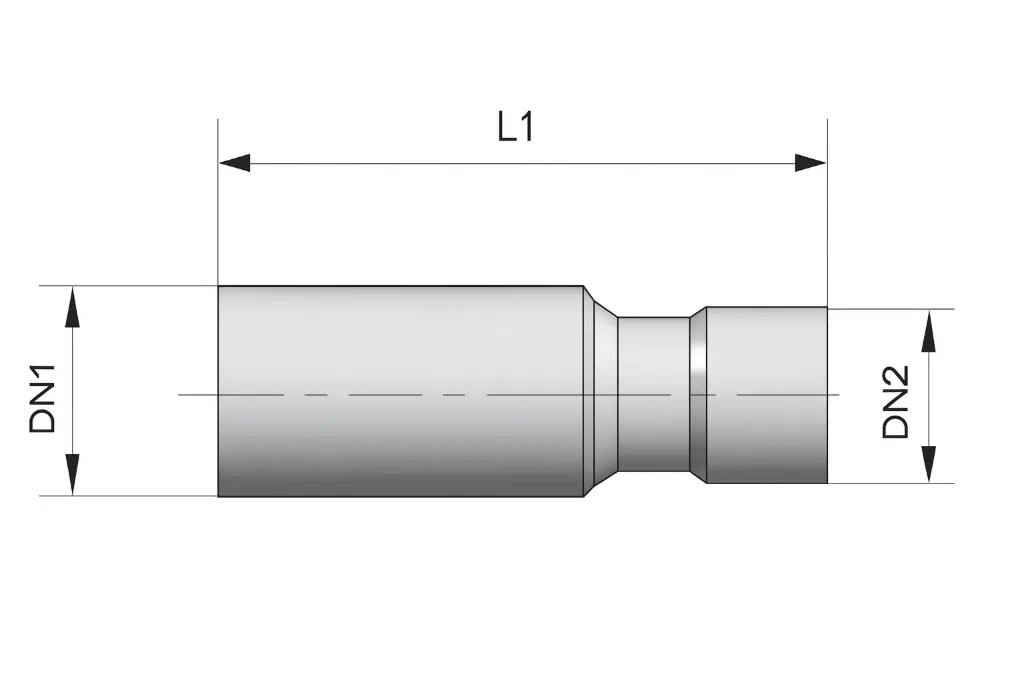

Specifications

• Telstra Code: 73/185

• Nominal Sizes (DN1): 110mm (PE)

• Nominal Sizes (DN2): 100mm (PVC)

• Length (L1): 250mm

• Material: PVC

• Compliance: Manufactured to Telstra and PIPA guidelines

Applications

Ideal for telecommunication and data conduit installations, including Telstra, NBN, and other underground network projects requiring a dependable PE-to-PVC connection.
