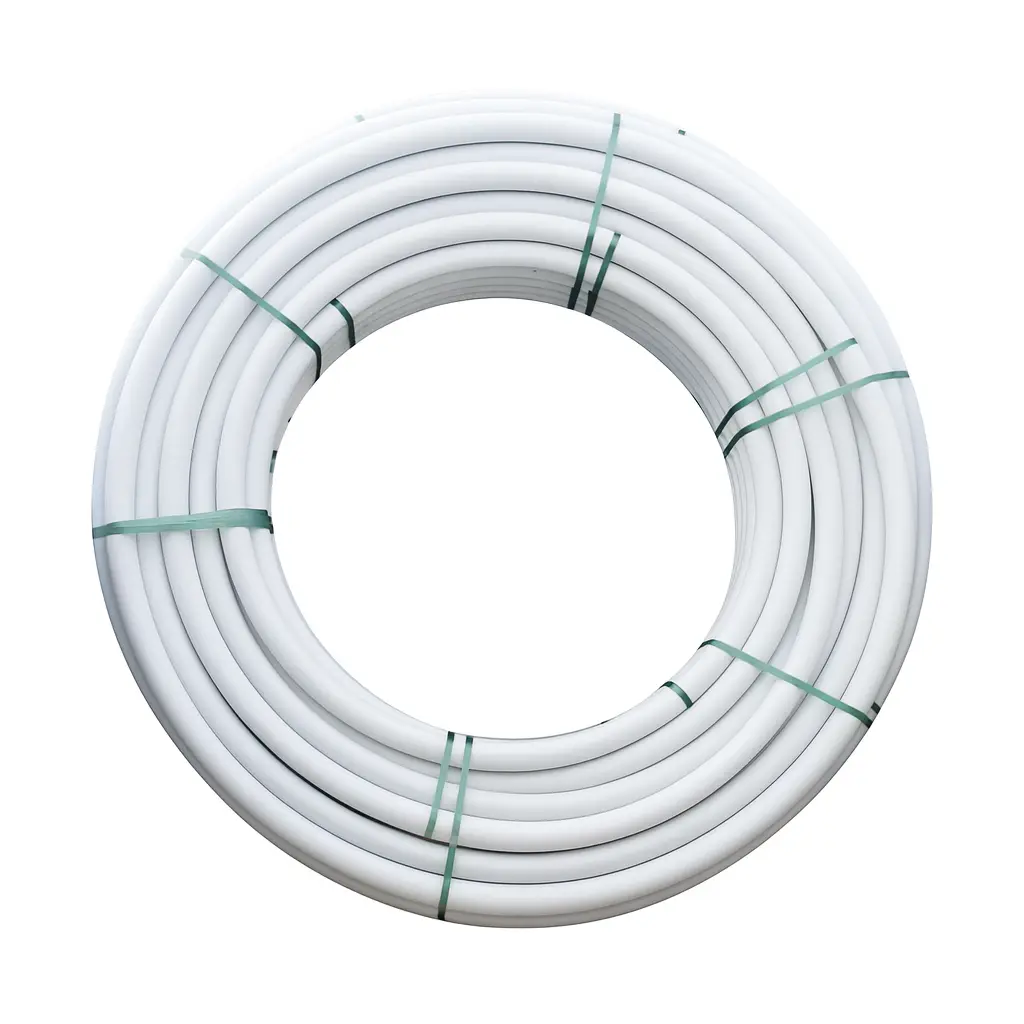

Communications Bore Pipe (HDPE Coils) 125mm x 100m

Our Communication HDPE Bore Poly Pipe provides durable, flexible, and long-lasting protection for underground communication and data cables. Designed from premium High-Density Polyethylene (HDPE), it delivers superior strength and resilience in all installation environments.

Key Features

• Strong & Flexible: Handles bends and uneven terrain with ease, ideal for trenchless and direct-burial installations.

• Quick Installation: Supplied in long continuous coils to minimise joints and reduce setup time.

• Corrosion & Chemical Resistant: Performs reliably in aggressive soils and harsh environments.

• Clear Identification: Distinct white outer layer ensures compliance and easy recognition.

• Long Service Life: UV-stabilised, weldable, and built to last over 100 years.

Applications

Ideal for telecommunication, fibre-optic, and data network protection using open trench, HDD, or ploughing methods.

Branding

Printed with “Telecommunications” on the pipe, not “Telstra”.

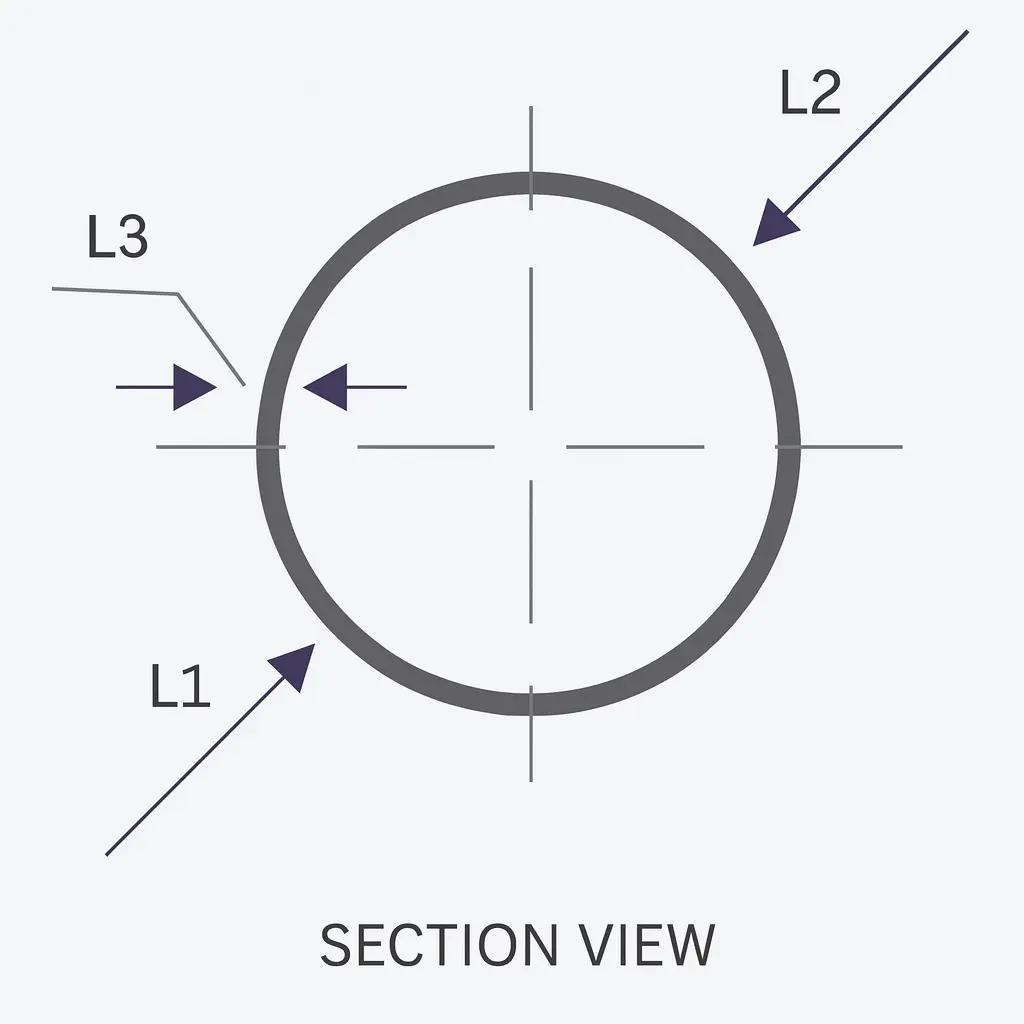

Sizing

Nominal Size (mm): 125
Mean O.D. (mm) L1: 125.6
Mean I.D. (mm) L2: 106.1
Mean Wall (mm) L3: 9.8
Weight (kg): 340
SDR: 13.6
Length (M) L4: 100

Specifications

Pipes are manufactured to AS/NZS 4130:2018 from PE100 resin complying to AS/NZS 4131
